Map Dependencies

Trace the dependencies in a software bill of materials (SBOM) for a given repository and assign weights or other metrics to each node. New to OSO? Check out our Getting Started guide to set up your API access.

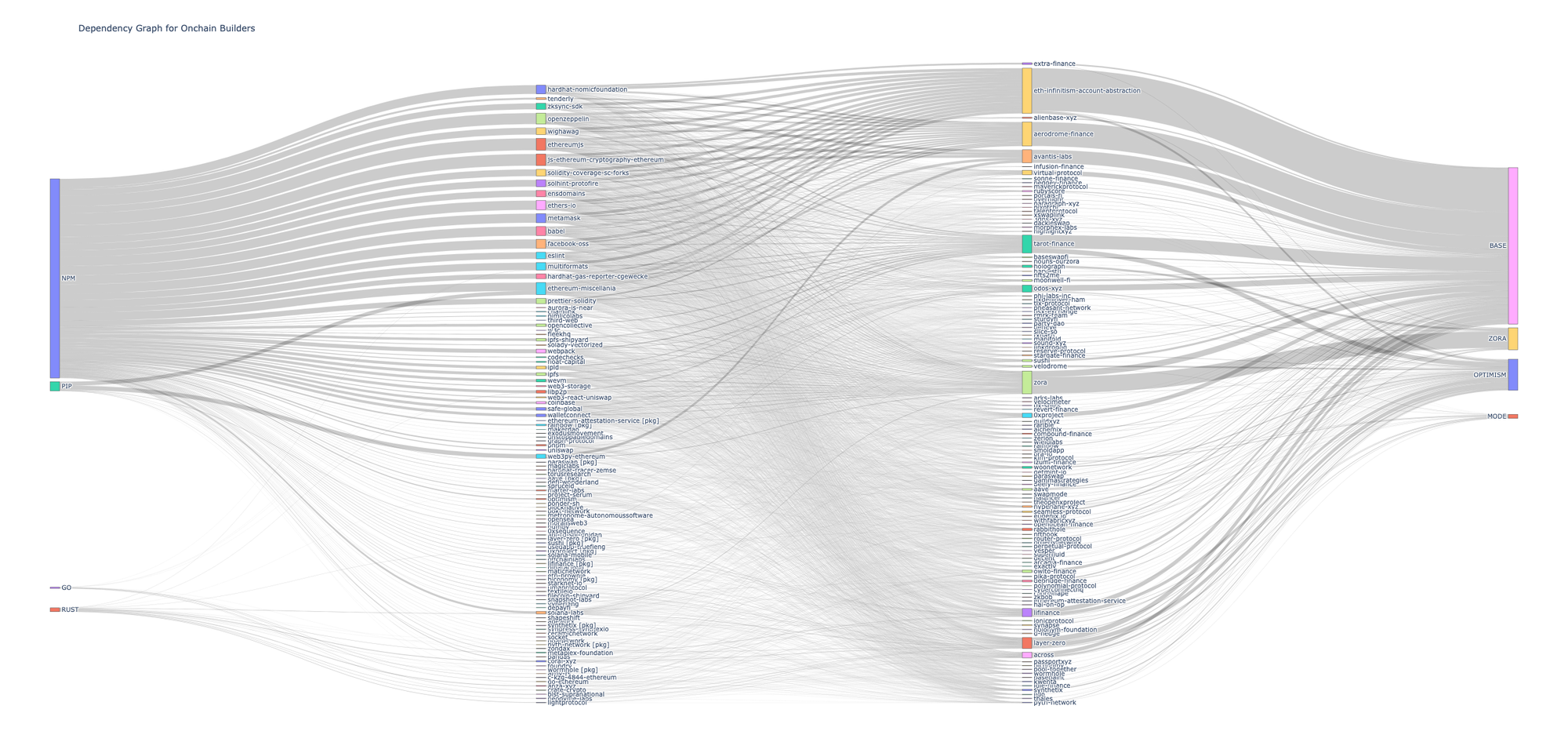

Dependency Graph

Getting Started​

Before running any analysis, you'll need to set up your environment:

Start your Python notebook with the following:

import os
import pandas as pd
from pyoso import Client

OSO_API_KEY = os.environ['OSO_API_KEY']
client = Client(api_key=OSO_API_KEY)

For more details on setting up Python notebooks, see our guide on writing Python notebooks.

Identify Repositories and Packages​

Repository Metadata​

Get metadata and basic stats about a repository using OSO's indexed data:

query = """
SELECT *
FROM repositories_v0
WHERE artifact_url = 'https://github.com/ethereum/go-ethereum'
"""
df = client.to_pandas(query)

SBOMs (Package Dependencies)​

OSO uses GitHub's Software Bill of Materials (SBOMs) dataset to identify package dependencies. Note that this data doesn't differentiate between direct and indirect dependencies, but provides a good starting point for mapping the software supply chain:

query = """
SELECT *
FROM sboms_v0
WHERE from_artifact_id = '0mjl8VhWsui_6TEZZnbQzyf8h1A9bOioIlK17p0D5hI='
"""
df = client.to_pandas(query)

Package Maintainers​

OSO leverages Open Source Insights (deps.dev) data to identify the repo that maintains a given package. This covers approximately 90% of packages based on our testing:

query = """
SELECT
  package_artifact_source,
  package_artifact_name,
  package_owner_project_id,
  package_owner_artifact_namespace,
  package_owner_artifact_name
FROM package_owners_v0
WHERE package_artifact_name = '@libp2p/echo'
"""
df = client.to_pandas(query)

Package Usage Metrics​

The following query uses package ownership data to calculate the number of projects that depend on a given package maintainer:

query = """
SELECT
  package_owners.package_owner_artifact_namespace as maintainter,
  sboms.to_package_artifact_source as package_source,
  sboms.to_package_artifact_name as package_name,
  count(distinct sboms.from_artifact_id) as count_dependent_repos,
  count(distinct sboms.from_project_id) as count_dependent_projects
FROM sboms_v0 sboms
JOIN package_owners_v0 package_owners
  ON
    sboms.to_package_artifact_name = package_owners.package_artifact_name
    AND sboms.to_package_artifact_source = package_owners.package_artifact_source
WHERE
  package_owners.package_owner_artifact_namespace = 'wevm'
GROUP BY 1,2,3
"""
df = client.to_pandas(query)

Build a Deep Funding Graph​

This example demonstrates how to create a dependency graph for a group of related repositories, such as the one used by Deep Funding. The analysis maps relationships between key Ethereum repositories and their package dependencies:

query = """
SELECT DISTINCT
  sboms.from_artifact_namespace as seed_repo_owner,
  sboms.from_artifact_name as seed_repo_name,
  sboms.to_package_artifact_name as package_name,
  package_owners.package_owner_artifact_namespace as package_repo_owner,
  package_owners.package_owner_artifact_name as package_repo_name,
  sboms.to_package_artifact_source as package_source
FROM sboms_v0 sboms
JOIN package_owners_v0 package_owners
  ON
    sboms.to_package_artifact_name = package_owners.package_artifact_name
    AND sboms.to_package_artifact_source = package_owners.package_artifact_source
WHERE
  sboms.to_package_artifact_source IN ('NPM','CARGO','GOLANG','PYPI')
  AND package_owners.package_owner_artifact_namespace IS NOT NULL
  AND CONCAT(sboms.from_artifact_namespace, '/', sboms.from_artifact_name)
    IN ('prysmaticlabs/prysm','sigp/lighthouse','consensys/teku','status-im/nimbus-eth2',
        'chainsafe/lodestar','grandinetech/grandine','ethereum/go-ethereum',
        'nethermindeth/nethermind','hyperledger/besu','erigontech/erigon',
        'paradigmxyz/reth','ethereum/solidity','ethereum/remix-project',
        'vyperlang/vyper','ethereum/web3.py','ethereum/py-evm',
        'eth-infinitism/account-abstraction','safe-global/safe-smart-account',
        'a16z/helios','web3/web3.js','ethereumjs/ethereumjs-monorepo')
"""
df = client.to_pandas(query)

# We can also go further and create a network graph from the data we've just fetched:
import networkx as nx

# turn each node into a GitHub URL
gh = 'https://github.com/'
df['seed_repo_url'] = df.apply(lambda x: f"{gh}{x['seed_repo_owner']}/{x['seed_repo_name']}", axis=1)
df['package_repo_url'] = df.apply(lambda x: f"{gh}{x['package_repo_owner']}/{x['package_repo_name']}", axis=1)

# Store in a Network Graph
G = nx.DiGraph()

for repo_url in df['seed_repo_url'].unique():
    G.add_node(repo_url, level=1)

for repo_url in df['package_repo_url'].unique():
    if repo_url not in G.nodes:
        G.add_node(repo_url, level=2)

for _, row in df.iterrows():
    G.add_edge(
        row['seed_repo_url'],
        row['package_repo_url'],
        relation=row['package_source']
    )

# Placeholder for adding weights to the graph
global_weight = 0
for u, v in G.edges:
    G[u][v]['weight'] = global_weight

For more examples of dependency analysis, check out the Deep Funding repo.

Weight Nodes and Edges​

Most Used Dependencies​

Find the most commonly used dependencies across all projects in OSO. This query joins package ownership data with SBOM data to count how many projects depend on each package:

query = """
SELECT
  p.project_id,
  pkgs.package_artifact_source,
  pkgs.package_artifact_name,
  COUNT(DISTINCT sboms.from_project_id) as num_dependents
FROM package_owners_v0 pkgs
JOIN sboms_v0 sboms
  ON pkgs.package_artifact_name = sboms.to_package_artifact_name
  AND pkgs.package_artifact_source = sboms.to_package_artifact_source
JOIN projects_v1 p
  ON pkgs.package_owner_project_id = p.project_id
WHERE pkgs.package_owner_project_id IS NOT NULL
GROUP BY 1,2,3
ORDER BY 4 DESC
"""
df = client.to_pandas(query)

# Optional: Display top dependencies
print("Top 10 most used dependencies:")
print(df.head(10))

Downstream Impact​

This is an example of a more advanced analysis that demonstrates how to analyze relationships between onchain projects and their development dependencies:

query = """
SELECT
  onchain_projects.project_name as onchain_builder,
  onchain_metrics.event_source as network,
  onchain_metrics.address_count_90_days,
  onchain_metrics.gas_fees_sum_6_months,
  onchain_metrics.transaction_count_6_months as transactions_6_months,
  code_metrics.project_name as dev_tool_maintainer,
  package_owners.package_artifact_source as package_source,
  code_metrics.active_developer_count_6_months,
  code_metrics.contributor_count_6_months,
  code_metrics.commit_count_6_months,
  code_metrics.opened_issue_count_6_months,
  code_metrics.opened_pull_request_count_6_months,
  code_metrics.fork_count,
  code_metrics.star_count,
  code_metrics.last_updated_at_date
FROM sboms_v0 sboms
JOIN projects_v1 onchain_projects
  ON sboms.from_project_id = onchain_projects.project_id
JOIN projects_by_collection_v1 projects_by_collection
  ON onchain_projects.project_id = projects_by_collection.project_id
JOIN onchain_metrics_by_project_v1 onchain_metrics
  ON onchain_projects.project_id = onchain_metrics.project_id
JOIN package_owners_v0 package_owners
  ON sboms.to_package_artifact_name = package_owners.package_artifact_name
JOIN code_metrics_by_project_v1 code_metrics
  ON package_owners.package_owner_project_id = code_metrics.project_id
WHERE
  projects_by_collection.collection_name = 'op-retrofunding-4'
  AND transaction_count_6_months >= 1000
  AND address_count_90_days >= 420
"""
df = client.to_pandas(query)

# Optional: Add visualization code
import plotly.express as px

# Example visualization
fig = px.scatter(df,
    x='address_count_90_days',
    y='transactions_6_months',
    size='gas_fees_sum_6_months',
    hover_data=['onchain_builder', 'dev_tool_maintainer']
)
fig.show()

You can go even further in your analysis by joining on other OSO datasets. For more examples, check out the Deep Funding repo.
